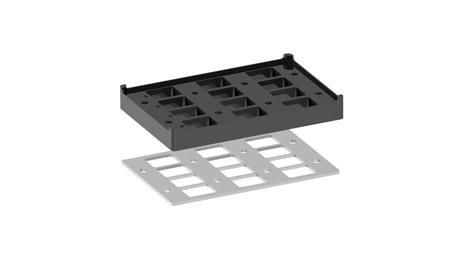

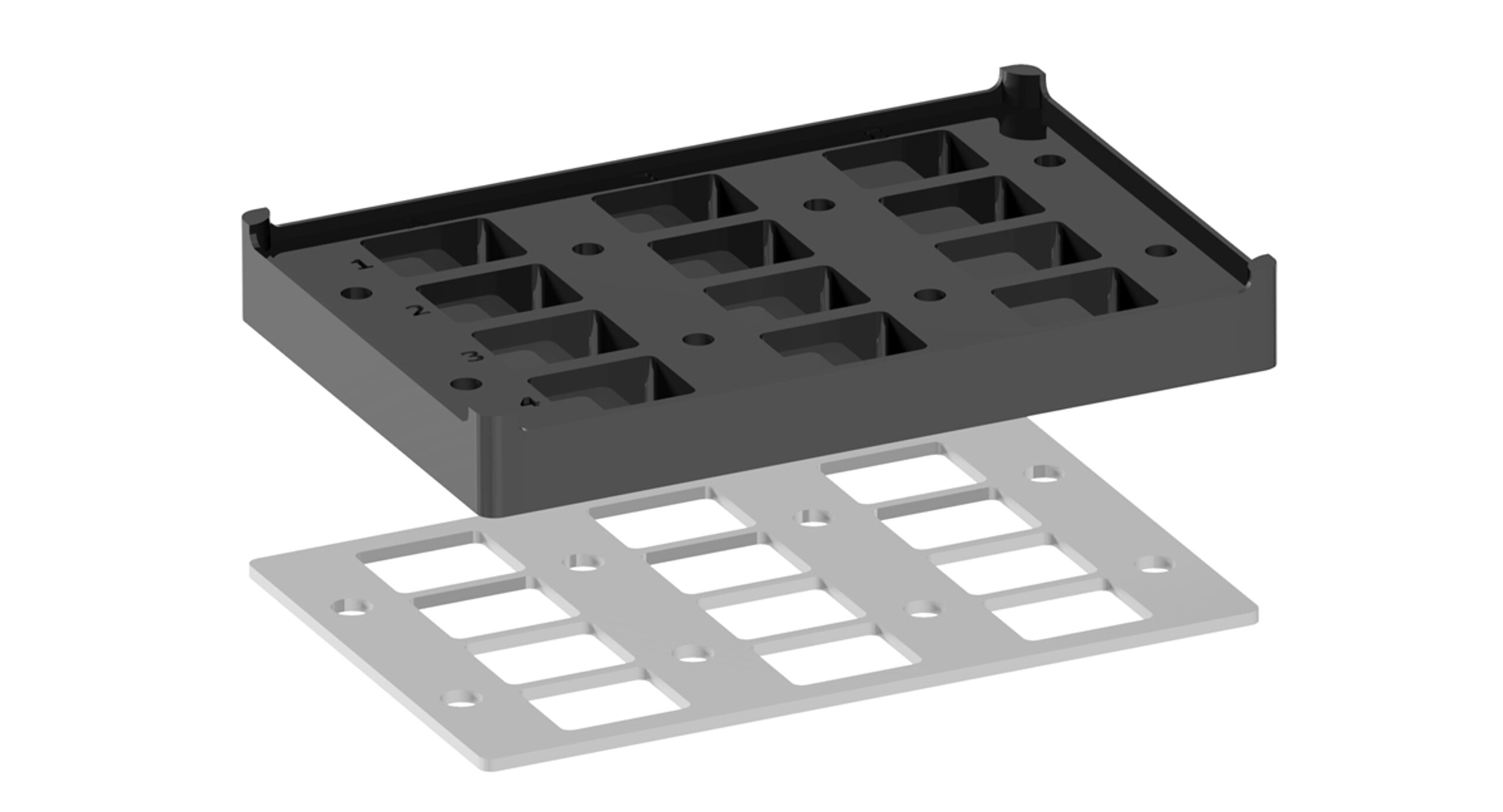

Well plate and silicone seal compatible with the 3/4 PEPperCHIP® Incubation Tray for performing immunoassays at your own facility. Test multiple samples or multiple microarrays at once. Fully reusable.
Product information
• | Compatibility: can be used with peptide microrrays with 4 array copies; holds up to 3 microarrays at once |
• | Components: CPE tray well plate and silicone seal (PEPperCHIP® Incubation Tray base plate, lid, and screws not included) |
• | Dimensions: 12.8 cm x 8.55 cm |
• | Well size: 16 mm x 20 mm |
Sample information
• | A minimum assay volume of 350 µL per well is recommended to ensure complete microarray surface coverage |
Storage, cleaning, and safety information
• | Store at room temperature and avoid exposure to direct sunlight |
• | Clean with mild detergents or distilled water; abrasive cleaning methods or cleaning agents should not be used |
| Not to be used for in vitro diagnostic purposes |
| Not to be used with acetone, ether, benzene, chloroform, or concentrated acids |
| Not to be used at temperatures above 65oC |
Estimated delivery time
• | 1-5 days after order confirmation |
Also available in different formats
• | 3/1: Incubation Tray / Well Plate |
• | 3/2: Incubation Tray / Well Plate |
• | 3/3: Incubation Tray / Well Plate |
• | 3/4: Incubation Tray |
• | 3/5: Incubation Tray / Well Plate |
• | 3/16: Incubation Tray / Well Plate |
Learn how to perform the assay
• | PEPperCHIP® Immunoassay Protocol [download pdf] [watch video] |
• | PEPperCHIP® Immunoassay Quickstart Guide [download pdf] |
Steps | Materials and equipment | We recommend |
Immunoassay | Incubation tray | PEPperCHIP® Incubation Tray* |
Orbital shaker | - | |
Blocking reagents | BSA, or Rockland Blocking Buffer* | |
Control antibodies | PEPperCHIP® Control Antibodies | |
Buffers | PBS, Tween 20 | |
Labelled secondary antibodies | Rockland secondary antibodies* | |
Data acquisition | Microarray scanner | Innopsys InnoScan® 710/710-IR* |
Data analysis | Fluorescence spot intensity quantification software | MAPIX Analyzer by Innopsys |
Spreadsheet software | - |
*used in-house by PEPperPRINT
Well plate and silicone seal compatible with the 3/4 PEPperCHIP® Incubation Tray for performing immunoassays at your own facility. Test multiple samples or multiple microarrays at once. Fully reusable.
TBD.00 EUR
Excl. tax and shipping costs.
